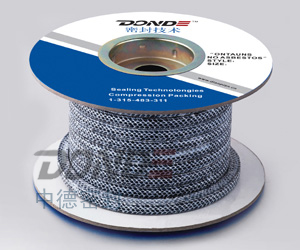

Carbonized
Fibre Packing
Item No.:ZD-P1300
Description:Carbonized
fiber packing is a braided packing made of carbonized poly acrylonitrile
fiber. And Carbonized fiber packing is finished with PTFE dispersion and
lubricant. This gland packing covers wide range of application. For
example, Carbonized fiber packing can seal water, brine, factory wastes
alt solutions, mineral oil etc.It can be also used for centrifugal
pumps, agitators, mixers, sterntubes etc. What's more, Carbonized fiber
packing is relatively economic among non-asbestos packing.So Carbonized
fiber packing is widely used as it's economical and bread-and-butter
character.
Feature:
1. It has small
coefficient of friction （u=0.3）, well self lubrication, and it can save
energy consumption and reduce the damage to counterpart to prolong its
service life.
2. It has well heat conductivity, near the one of
metal（10～20kcal）, when it is used to the dynamic sealing part with high
speed, It can conduct the heat of fabrication out. Therefore, it can
avoid the burning of material caused by accumulated heat to prolong its
service life, and lower the requirement for cooling of sealing sections.
3. It can be applied to speed sealing. For example: it
can get well sealing on high pressure pump with a linear velocity of 25
m/s.
4. It has stable chemical property: as part of the
organic components of synthetic fibers have been eliminated during the
process, and only carbon is remained, so its chemical property is
stable. Meanwhile, in the course of production, there will be a cover of
PTFE on the fiber surface, which reinforces its stability of chemical
property.
|
SPECIFICATION |
Centrifugal separator |
Reciprocating pump |
Valve |
|
PH VALUE |
0 - 14 |
|
PRESSURE （BAR）
|
30 |
100 |
200 |
|
WORKING TEMPERAURE |
-200 CENTIGRADE ~ 288
CENTIGRADE |
|
LINEAR SPEED (M/S) |
20 |
2 |
2 |
|
Fluid medium
Conditions for operating mode |
Service Temperature |
50～80 |
120～200 |
|
Adaptive P.V（Mpa. m/s）
|
CLEAN WATER |
20.00 |
10.0 |
|
WASTE WATER |
5.0 |
-- |
|
Adaptive linear velocity，m/s |
CLEAN WATER |
25.00 |
20.00 |
|
WASTE WATER |
15.00 |
-- |
|
Pressure limit，Mpa |
CLEAN WATER |
15.00 |
1.00 |
|
WASTE WATER |
5.0 |
-- |
| Type
and density of fluid |
Adaptive temperature limit ℃
|
| Air
|
80 |
|
Seawater，clean water and waste water |
100 |
| All
kinds of salt solution |
200 |
|
Animal, plant, fuel oil and lubricating oil |
150 |
|
Nitric acid 20% |
50 |
|
Sulphuric acid 20% |
80 |
|
Sulphuric acid 40% |
50 |
|
Hydrochloric acid 20% |
120 |
|
Hydrochloric acid 40% |
80 |
|
Phosphoric acid 40% |
120 |
|
Phosphoric acid 90% |
80 |
| NaOH
25%，KOH 35%，ammonia water 25% |
50 |
Main Specification:
|
SPECIFICATION |
Centrifugal separator |
Reciprocating pump |
Valve |
|
PH VALUE |
2 - 14 |
|
PRESSURE （BAR） |
20 |
100 |
300 |
|
WORKING TEMPERAURE |
-200 CENTIGRADE ~ 250
CENTIGRADE |
|
LINEAR SPEED (M/S) |
16 |
2 |
2 |
How to Order：
|
Item |
Order Code |
|
Carbonized Fibre Braided Packing |
ZD-P1300 |
|
Carbonized
Fibre Braided Packing With Graphite |
ZD-P1301 |
|
High Strength
Carbon Fibre Brainded Packing |
ZD-P1310 |
|
Carbon
Fibre Packing With Graphite Impregnated |
ZD-P1311 |
|
Carbon
Fibre Packing Aramide Corner |
ZD-P1312 |
|
PTFE Fibre Braided
Packing With Carbon Fiber Corner |
ZD-P1350 |
For more information,please contact with
us directly,thanks！
|
