		PTFE Graphite Packing Series
		PTFE Graphite Fibre Packing PTFE Graphite Fibre Packing With Oil
		PTFE Graphite Filament Yarn Braided Packing PTFE Graphite Packing Inter Aramide
		PTFE Graphite Packing Aramide Corner

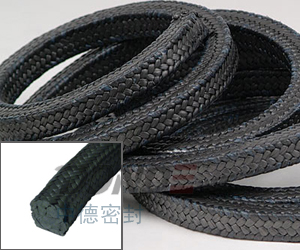

PTFE Graphite Fibre Packing With Oil

Item No.:ZD-P1214

Description:PTFE graphite packing with oil is a braided packing made of pure PTFE thin yarns fiber, and is treated with a special inert lubricant. It is a very plastic packing. Under a minimum pressure of the stuffing box, it keeps unchanged in the long run. The low friction coefficient prevents the surface of the shaft from forming heat even in the presence of high peripheral speeds. PTFE graphite packing with oil is suitable for high-concentrated chemical products, strongly aggressive and oxidative.

Main Specification:

Temperature)	-200℃~+280℃
Pressure	20bar(revolving) 100bar(reciprocating) 200bar(flange)
PH Range	0-14
Linear Speed)	0-16M/S
Size	33mm-6060mm（or as request）

How to Order：

Item	Order Code
PTFE Graphite Fibre Packing（12% carbon）	ZD-P1210
PTFE Graphite Fibre Packing（25% carbon）	ZD-P1211
PTFE Graphite Fibre Packing With Oil	ZD-P1214
PTFE Graphite Filament Yarn Braided Packing	ZD-P1215
PTFE Packing With Kevlar Fibre Corner	ZD-P1420
PTFE Graphite Packing Inter Aramide	ZD-P1421

For more information,please contact with us directly,thanks！
