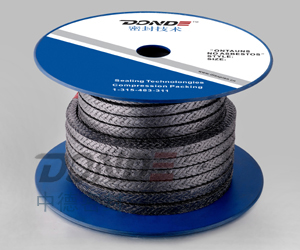

Special Packing For High Pressure Steam
Pump
Item No.:ZD-P1011T
Description:Mixed braided of graphite yarn and wire,make a core of
this kind of packing.Then the carbon fiber yarn is braided as outer
jacket and cover up the graphite core.This packing is specialized
designed for high pressure steam flange or pump.
Main Specification:
|
Temperature |
-200℃-+650℃（In the steam） |
|
-200℃-+455℃
(in the air） |
|
Pressure |
30MPa |
|
PH range |
0-14 |
|
Linear speed |
25M/S |
|
Size |
3*3mm-60*60mm（or as request） |
How to Order：
|
Item |
Order Code |
|
High Temperature and High Pressure Flange
Sealing Packing |
ZD-P1010T |
|
Special Packing For High Pressure Steam
Pump |
ZD-P1011T |
|
Reciprocating Pump Gland Packing |
ZD-P1020T |
|
Abrasion Resistant Gland Packing |
ZD-P1021T |
|
Special Packing for Food and Pharmacy
Industry |
ZD-P1022T |
|
Gland Packing for Tanker Container |
ZD-P1041T |
For more information,please contact with
us directly,thanks！
|
